B5 Audi S4 2.7T RS6-K04 Turbocharger Borg Warner bolt on turbo pair

Description

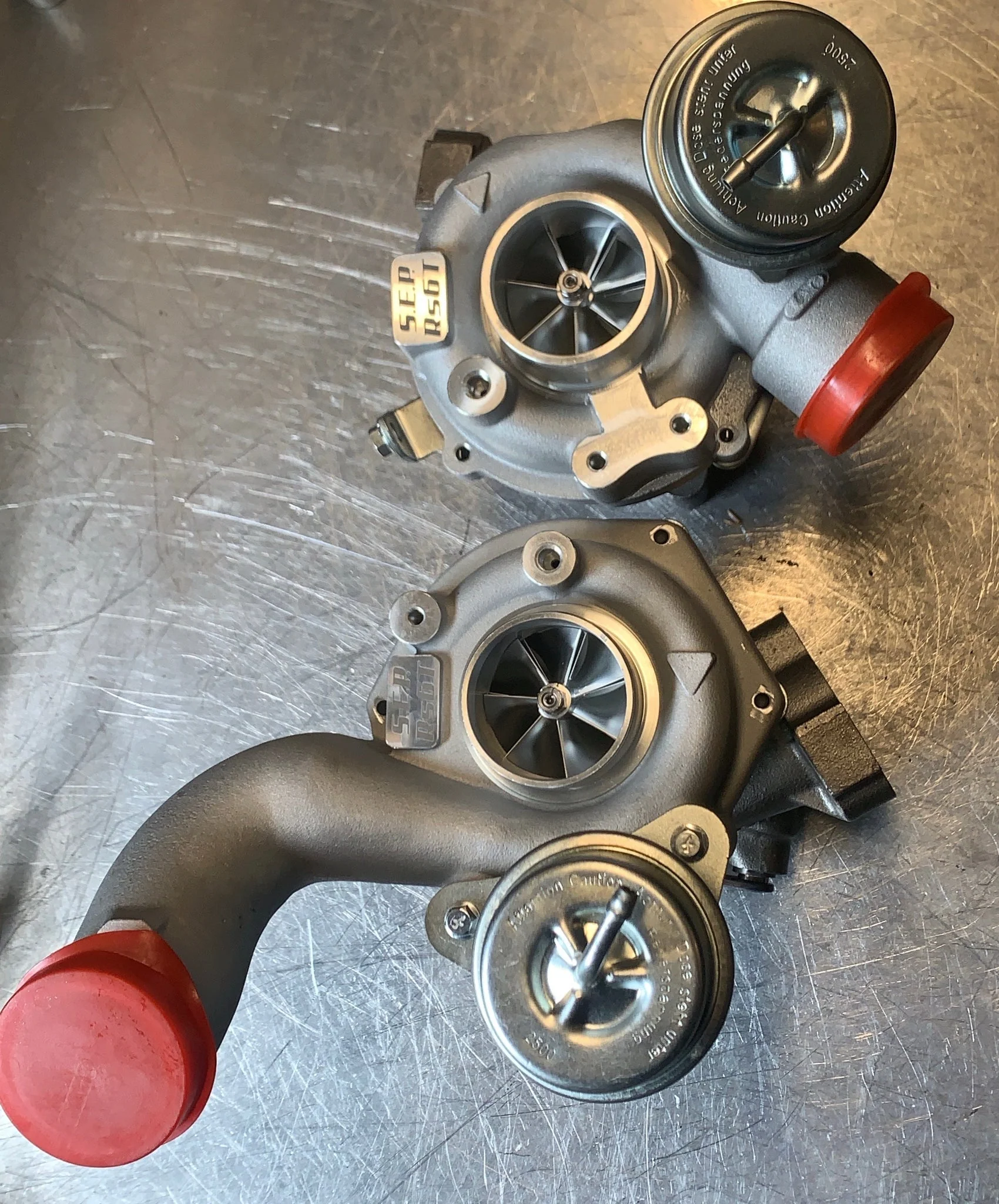

B5 Audi S4 2.7T RS6-K04 turbocharger pair from Borg Warner represents one of the most iconic and performance-oriented bolt-on turbocharger upgrades available for the 2.7-liter twin-turbocharged V6 platform found across the B5 S4, B5 RS4, C5 A6, and Allroad models. This hybrid turbo setup combines individual components from the RS6 and RS4 K04 turbochargers to uniquely balance superior airflow, responsiveness, and reliability, making it a favorite among tuners and enthusiasts aiming to push their 2.7T engines beyond factory power limits while retaining bolt-on compatibility.

Overview and Origins

The term RS6-K04 hybrid turbo set refers to turbochargers built around RS6 turbine housings paired with the compressor wheels and intake housings from the high-performance RS4 K04 units. The original RS6 turbos are larger and more efficient on the turbine side, handling higher exhaust flow and enabling improved spool and top-end horsepower over smaller RS4 K04 turbos. By mating these RS6 turbine housings to proven, highly flowing K04 compressor wheels, builders obtain a turbocharger with the physical fitment and bolt-on capability of K04s but the elevated performance flow capacity associated with RS6 components.

Technical Specifications

• Hybrid Build: Combines RS6 turbine housing (hot side) with RS4 K04 compressor wheel and housing (cold side).

• Compressor Wheel: Often dual-stacked or billet compressor wheels sourced or inspired by Borg Warner’s latest K04 designs, increasing efficiency and flow over OEM wheels.

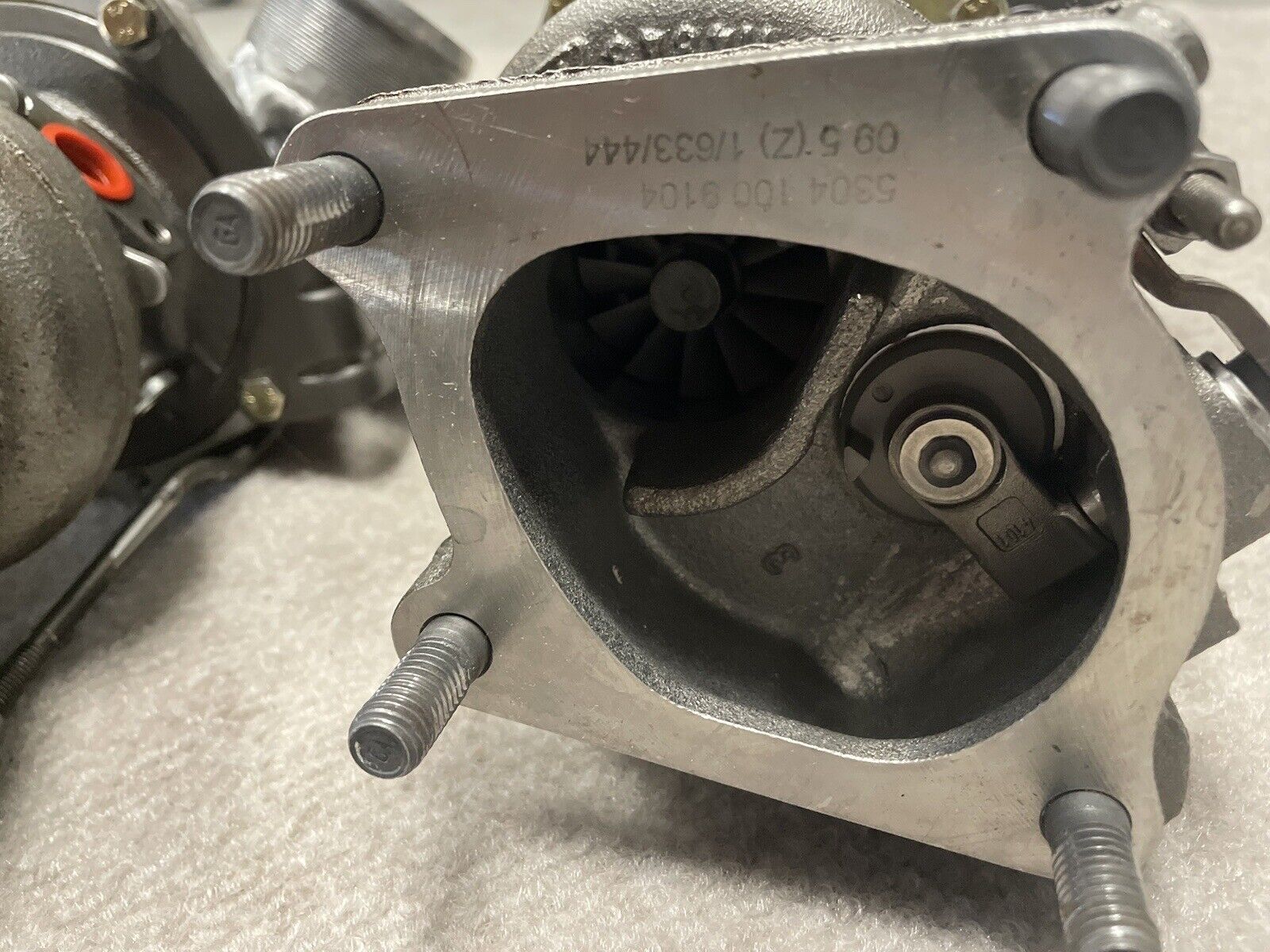

• Turbine Housing: Re-profiled or “bored out” RS6 housing made from 713C Inconel or similar high-grade material for durability and heat resistance.

• Bearing System: High-flow journal bearings with upgraded thrust kits or sometimes ball-bearing options to improve spool response and durability.

• Boost Range: Capable of supporting up to approximately 600+ crank horsepower with matching supporting mods and proper tuning.

• Rotor Assembly: Precisely balanced Center Housing Rotating Assembly (CHRA) for reduced vibration and longevity.

• Wastegate: Factory or upgraded wastegate systems, often adjustable, retain precise boost control.

Performance Characteristics

The RS6-K04 turbo pair has several key performance benefits:

• Fast Spool and Strong Midrange: Larger turbine housings allow better exhaust flow which, when combined with efficient K04 compressors, maintains quick spool and throttle response.

• High Peak Power: Supports high horsepower builds (commonly in the 550-600 HP range) without exhausting airflow capabilities.

• Better Heat Management and Durability: RS6 turbine housings are robust and able to withstand higher heat and pressure levels encountered in tuned applications.

• Bolt-On Compatibility: Designed as a direct bolt-on upgrade for the B5 S4 and related 2.7T platforms, minimizing the need for fabrication or complex modifications.

• Flat Boost Curve: Improved airflow leads to consistent boost pressures across the rev range, reducing turbo lag and improving throttle predictability.

Installation Features

• Bolt-On Setup: Designed to bolt directly to existing exhaust manifolds and downpipes typical of the Audi B5 S4 / RS4 platform.

• Compatible with Factory Components: Matches with OEM inlet and outlet piping, intake manifold, throttle body, intercooler setups, and boost control hardware, thus preserving factory reliability while enhancing performance.

• Tuning Required: For optimal reliability and performance, ECU remapping or standalone engine management systems are recommended to accommodate the increased airflow and boost pressure.

Supporting Modifications

To fully realize the potential of the RS6-K04 turbo pair, additional modifications are often necessary, including:

• Upgraded Fuel System: Larger fuel injectors (such as 550cc or 630cc) and high-flow fuel pumps ensure adequate fueling under higher boost.

• Intake and Exhaust: High-flow intercoolers, custom or high-performance downpipes, and less restrictive exhaust systems reduce pressure drop and heat soak.

• Cooling Enhancements: Upgraded radiators, oil coolers, and intercoolers help maintain reduced intake air and engine operating temperatures.

• Suspension and Drivetrain: To handle increased power, improved clutch systems, stronger driveshafts, and suspension upgrades aid reliability during spirited driving or track use.

Real-World Performance and Applications

Tuners and enthusiasts frequently report:

• Smooth and rapid spool characteristics delivering usable power early in the RPM range.

• Enhanced throttle response and flat torque delivery through mid and high rev ranges.

• Significant power gains without sacrificing driveability, evidenced by sub-11 second quarter mile times in properly tuned builds.

• Reliability improvement over stock or simple K04 swaps due to improved materials and precision in the hybrid turbo design.

• Cost-effectiveness relative to fully bespoke big turbo setups, making RS6-K04 hybrids a premier choice for balance between performance and daily usability.

Aftermarket Versions and Variations

Several manufacturers offer RS6-K04 hybrid turbos, such as:

• JHMotorsports RS6-RS Turbos: Incorporate lightweight billet compressor wheels, advanced bearing systems, and optimized housing geometries.

• TTE Series RS6-K04 Upgrades: Feature precision CNC-machined components with performance balancing and coating for thermal efficiency.

These turbo kits may come with additional hardware like turbo inlet pipes, downpipes, and tuning accessories ensuring full compatibility and ease of installation.

Challenges and Considerations

• Cost: Higher quality hybrid turbos can be costly relative to OEM replacements, but provide significantly better performance.

• Complexity: Installation necessitates careful planning to address fuel, ignition, and cooling system upgrades.

• Maintenance: High-performance turbos require meticulous maintenance practices including regular oil changes with premium fluids.

Summary

The B5 Audi S4 2.7T RS6-K04 turbocharger pair stands as a flagship bolt-on upgrade that blends the best of Audi’s forced induction engineering into a package that is powerful, reliable, and bolt-on friendly. By merging the RS6 turbine’s flow advantages with the efficiency of the K04 compressor, these turbos deliver rapid spool, strong midrange, and abundant top-end power—making them ideal for enthusiasts seeking to push their 2.7T engines into high 500s to 600+ horsepower territory without complex fabrication.

Their design balances technical excellence, real-world usability, and cost-effectiveness, backed by advancements like billet wheels, high-flow bearings, and premium materials. With proper tuning and supporting upgrades, the RS6-K04 turbo pair is widely regarded among Audi B5 S4 and RS4 communities as the definitive performance turbo solution for the 2.7T V6.
