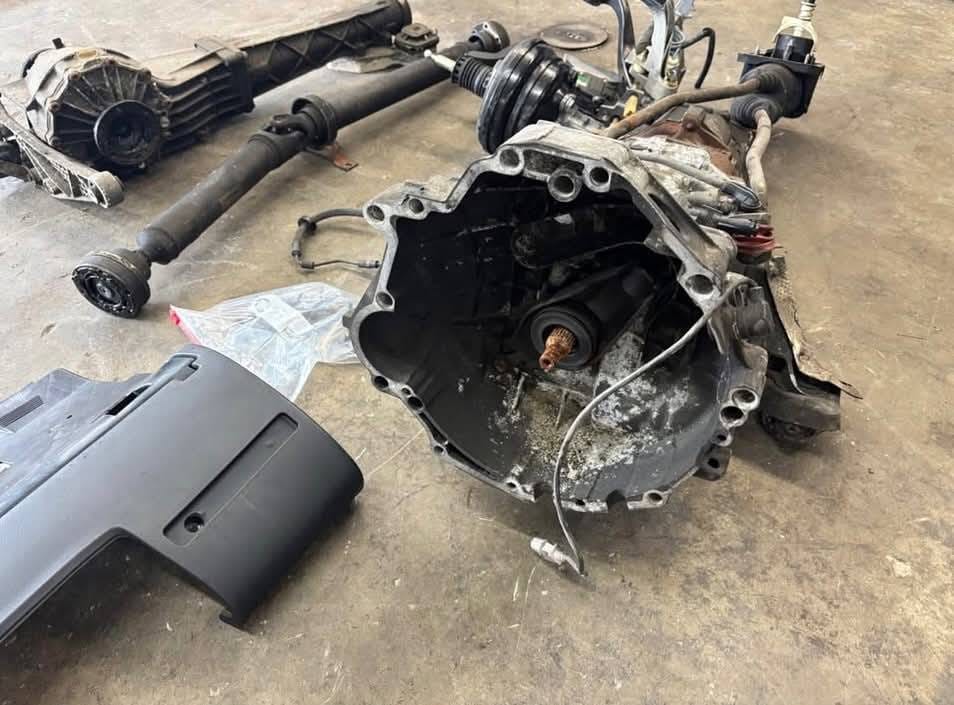

B5s4 6spd Manual 01e Swap

Description

B5 S4 6-speed manual 01E swap involves converting an Audi B5 S4 (or compatible B5 platform car) to the robust 01E 6-speed gearbox, whether replacing an automatic or servicing/upgrading the existing manual drivetrain with stronger, more performance-oriented parts. Enthusiast and motorsport circles highly value this swap for its ability to support high torque, its crisp shifting, and its longevity in performance builds.

What is the 01E 6-Speed Transmission?

The 01E is a longitudinally mounted, close-ratio 6-speed manual transmission produced by Audi for its high-performance models, notably the B5 S4 (2000–2002 North American market) and C5 A6/Allroad with 2.7T engines. Audi engineered the 01E to handle substantial torque output, particularly from the 2.7T twin-turbo V6, and it became renowned for its robust internal components, stout magnesium or alloy case, and compatibility with all-wheel-drive Quattro systems.​​

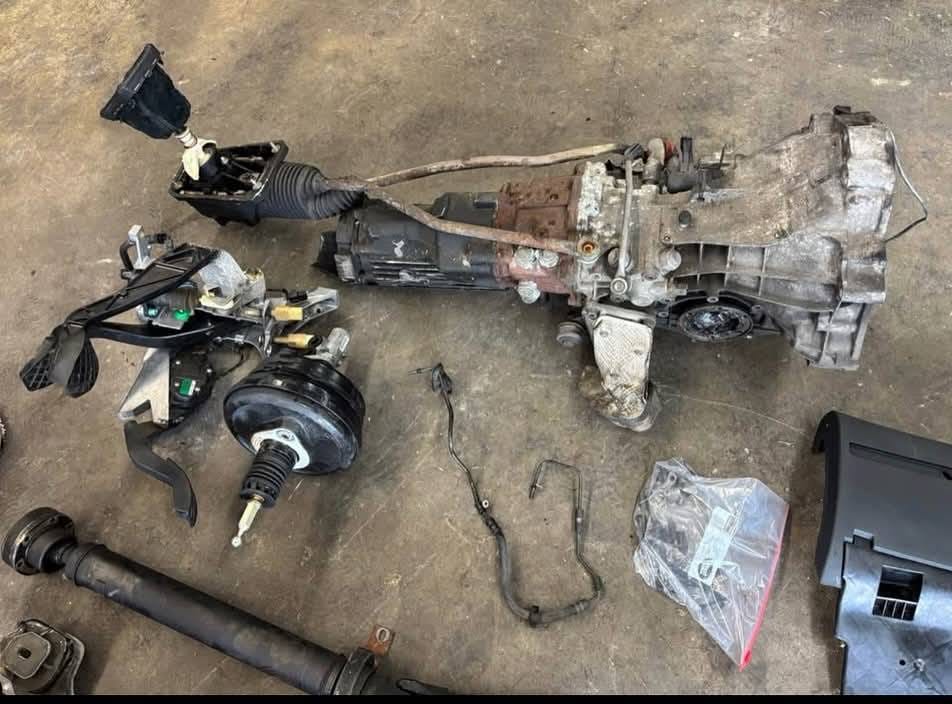

Core Components Needed for a 01E Swap

Transmission & Driveshaft

• 01E 6-speed transmission (code specific to donor and recipient car).

• Manual driveshaft (it’s a different length than the automatic version; sometimes custom driveshafts or an adapter are needed if mixing donor/recipient generations).​​

• Transmission mount and bracket compatible with the 01E.

Pedal Cluster & Linkage

• Manual pedal cluster (brake and clutch pedals).

• Clutch master and slave cylinders, with proper hydraulic lines.

• Shift linkage and shifter box for the 01E, which is more robust than the 5-speed or automatic shifter.

Clutch and Flywheel

• Flywheel: Single-mass or dual-mass depending on preference; must match the clutch and 01E input specs.

• Clutch kit: Stage depending on engine output goals. OEM for stock, or upgraded for tuned engines (Stage 2/3 S4s or above).

• Throwout bearing and necessary hardware.

Differential/Rear Axle Compatibility

• Depending on the transmission and donor/recipient, final drive gear ratios may require the rear differential to be swapped or adapted (auto/manual rear differentials often have different ratios).

• Front and rear axles usually do not need to be changed for a true B5 S4, but confirm compatibility for hybrid swaps.

Electrical/Harness/ECU

• Manual ECU or recoded original ECU to avoid check engine lights and retain correct idle/cruise control behavior.

• Swap-specific harnesses for reverse lights, clutch switch wiring (for starter interlock and cruise deactivation).

• Some swaps require coding or a neutral safety switch bypass.

Interior Components

• Manual transmission shift boot, knob, and interior trim.

• Clutch pedal stop.

Swap Steps: Removal and Installation Process

1. Removing the Old Transmission

• Disconnect the battery, raise the car securely.

• Pull exhaust, driveshaft, and crossmembers for access.

• Remove transmission fluid, then unbolt the trans from the engine, axles, and mounts.

• If replacing auto, remove the auto shifter, gear position interlock, and transmission cooler lines.

2. Modifying or Installing Supporting Components

• Remove brake pedal, install manual pedal cluster.

• Route clutch master cylinder line and install slave cylinder on the transmission.

• Run wiring for reverse lights and clutch switch.

• Install or modify the shifter box and center console.

3. Installing the 01E Transmission and Driveshaft

• Install the appropriate flywheel and torque to spec.

• Install clutch disc, pressure plate, and throwout bearing.

• Mate the 01E to the engine, torque the bellhousing bolts, and reconnect the axles.

• Install the shifter linkage and drive shaft (modification may be required).

• Use new mounts, spacers, and hardware as needed.

4. Wiring and Coding

• Hook up reverse switch, starter safety (via clutch switch), and neutral safety bypass if applicable.

• Make ECU adjustments if needed to enable cruise control, start logic, and check engine light off.

5. Fill Fluids and Test

• Fill the 01E with the recommended fluid (Audi or Redline/Amsoil gear oils are popular).

• Test the clutch operation, shifter feel, and gear engagement with wheels off the ground.

• Lower car, test drive gently. Monitor for leaks, noise, vibrations, and correct gear engagement.

Key Best Practices

• Use new clutch hydraulics and hardware for longevity and reliability.

• Always replace or service the rear main seal and pilot bearing/bushing while the transmission is out.

• Consider upgrading to a short shifter or stiffer shifter bushings for improved feel.

• Depending on build goals, robust aftermarket axles and mounts can be fitted for high horsepower setups.

Upgrades and Variations

• Many opt for performance single-mass flywheels and high-clamp clutches.

• Billet shift forks, upgraded synchros, and even gear set conversions are available for high-power dragstrip or track builds.​

• Aftermarket shifter boxes (JHM, Apikol, etc.) enhance precision.

• When fitting to a non-S4 (e.g., a B5 A4), driveshaft work and clutch pedal bracket fabrication may be needed, along with adapted rear diff ratios.

Troubleshooting

• Common issues post-swap include improper clutch engagement (bleed lines carefully), missed electrical connections for reverse lights or starting, vibration from misaligned driveshaft, and warning lights that require recoding.

• 1-2 gear collar issues plague high-mileage 01Es and may require preventive replacement with updated parts or professionally rebuilt units.

Longevity and Performance

• Properly swapped 01E transmissions are known to handle 500+ hp with the right internal upgrades.

• Paired with the S4’s 2.7T, they provide a balanced gear spread for quarter-mile, track, and spirited street driving.

• OEM and aftermarket rebuild parts are readily available, making servicing feasible for years to come.

Conclusion

A 6-speed manual 01E swap transforms a B5 S4 or B5 platform Audi. While more involved than a simple bolt-in, the process is well-trodden by the Audi enthusiast community. It brings major performance, durability, and engagement benefits for both factory turbo and highly modified cars.
