JHM B5 S4 Front Mount Intercooler

Description

JHM Front Mount Intercooler (FMIC) Kit for the Audi B5 S4 and RS4 2.7T is widely regarded as one of the most effective and performance-oriented cooling upgrade solutions for these legendary Audi twin-turbo V6 platforms. Designed to replace the restrictive factory side-mount intercooler, the JHM FMIC provides significant improvements in cooling efficiency, airflow, boost response, and power potential while maintaining excellent fitment and driveability characteristics. This detailed description delves into every facet of the JHM B5 S4 front mount intercooler, covering its technical specifications, materials, design features, installation requirements, performance impact, and user feedback for a comprehensive understanding.

Overview and Rationale for Upgrade

The stock intercooler system on the B5 S4 uses a side-mount intercooler (SMIC) style cooled by airflow through the wheel well, which is adequate for factory boost pressures but prone to heat soak during extended hard driving. Heat soak reduces intercooler efficiency, causing hotter intake air temperatures that lower power and engine safety margins. The JHM FMIC kit replaces this with a front-mount radiator-style core placed directly behind the front bumper, exposed to maximum airflow for superior cooling.

Core Specifications and Engineering

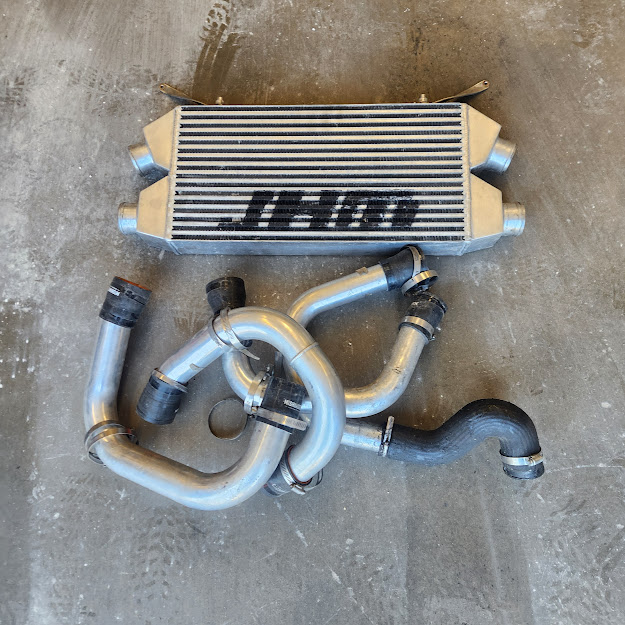

The JHM FMIC utilizes a large bar-and-plate core:

• Overall Core Size: 30 inches in length, providing substantial frontal area for heat exchange.

• Core Dimensions: 22 inches length × 11 inches height × 3 inches thickness.

• Inlet/Outlet Diameter: Both are 2.5 inches diameter to provide a consistent, unrestricted airflow path.

• Material: 100% aluminum construction for the core and end tanks ensures excellent thermal conductivity and durability.

• Design: CNC-machined and stamped, with hand-welded end tanks for precision and leak-proof integrity.

• Air Flow Capacity: Rated to handle less than 700 cubic feet per minute, supporting engine outputs up to 600-700 horsepower.

• Pressure Drop: Minimal pressure drop of 2-5 psi at 35 psi boost, ensuring efficient boost delivery.

Kit Components and Integration

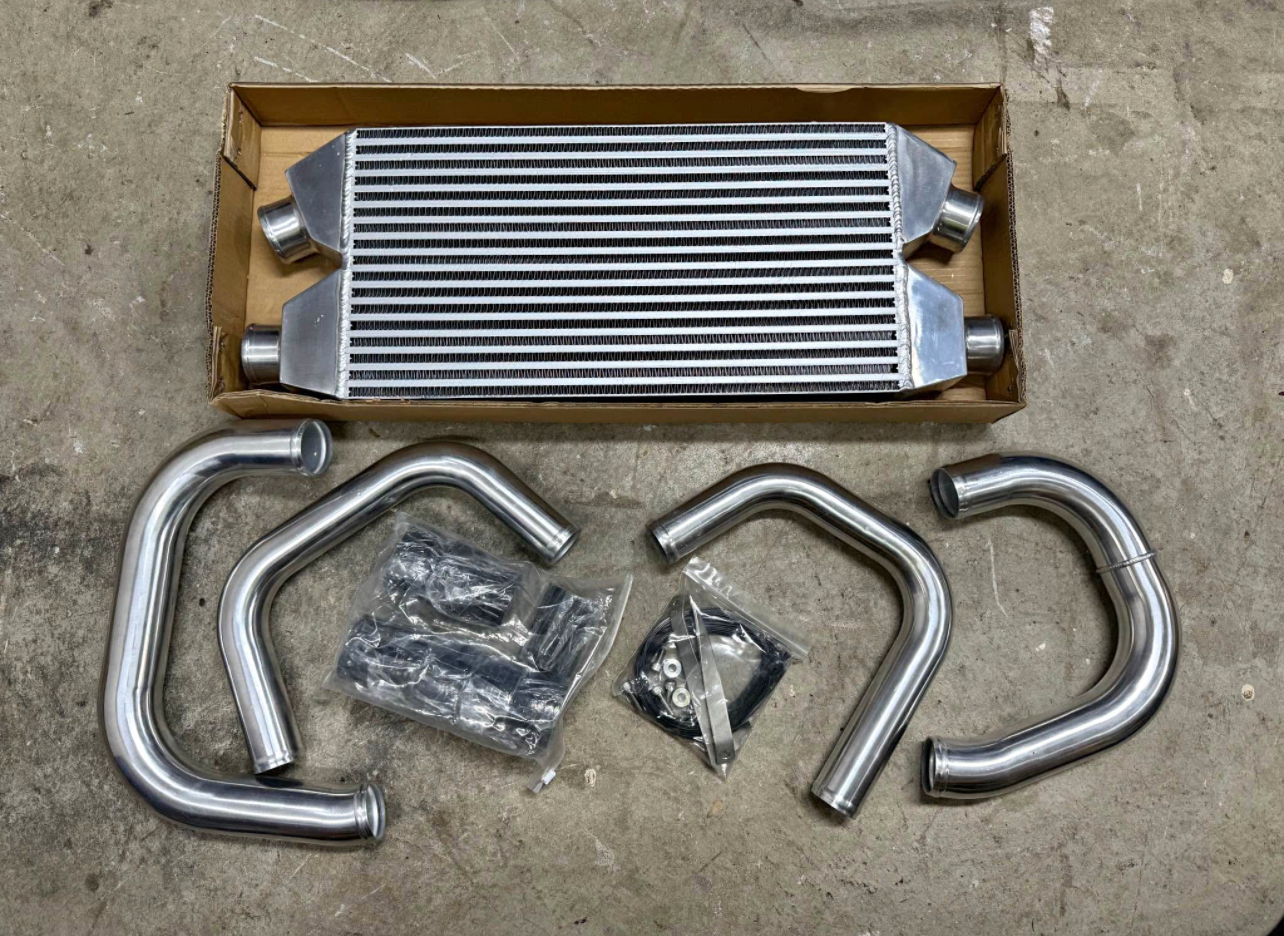

This front mount intercooler kit is comprehensive and includes:

• The FMIC core as described above,

• A four-piece custom-mandrel bent pipe set featuring 2.25-inch diameter pipes connecting the factory or aftermarket bi-pipe to the intercooler. Pipes that connect directly to turbo outlets are 2 inches, matching factory turbo outlet pipes.

• Couplers and T-bolt clamps in a choice of colors: blue, red, or black.

• Stainless steel mounting brackets, hardware, zip ties, plugs, and adjustment shims for secure installation.

• Options for both stock/APR or the RS4 bi-pipe connections are included to ensure compatibility across various intake configurations.

• A detailed 19-page installation packet and a 35-minute exclusive video tutorial from JHM aid installers in a smooth and effective setup.

Performance Benefits

Installation of the JHM FMIC provides numerous tangible benefits:

• Reduced Intake Air Temperatures (IATs): The large aluminum core and exposed location boost heat dissipation, maintaining cooler, denser air to the engine.

• Increased Power and Torque Potential: Cooler intake temperatures equate to more oxygen, improving combustion efficiency and enabling higher boost safely.

• Improved Boost Response: The improved airflow, balanced piping, and minimized pressure drops translate to crisper turbo spool and throttle response.

• Enhanced Consistency Under Load: The FMIC maintains efficacy during prolonged racing, spirited driving, or hot weather, preventing power drop-offs due to heat soak.

• Support for Big Turbo Builds: Its high-flow capability supports modified engines running K04, RS6, or JHM RS6-R turbos commonly producing 500-700 horsepower.

Installation and Compatibility Considerations

Installing the JHM FMIC on a B5 S4 or RS4 does require cutting and modification of the factory bumper support and possibly the lower fascia for proper clearance, reflecting the balance between factory safety features and aftermarket performance goals. JHM provides adjustable mounting brackets and all related hardware to facilitate proper fitment.

Key considerations include:

• Patience and metal fabrication skills are recommended for the best fitment outcome.

• The kit works well with stock bumpers and most aftermarket bumpers with minor tweaks.

• The upgrade eliminates the restrictive driver side lower radiator hose but retains the passenger side lower hose.

• Recommended for cars equipped with upgraded motor mounts and JHM’s Drive Train Stabilizer (DTS) to reduce engine movement that could affect piping alignment.

Additional Upgrades and Synergies

JHM also offers a complementary high or medium-flow electric fan kit to accompany the FMIC. This kit replaces the factory belt-driven mechanical fan, reducing parasitic engine power loss and improving cooling efficiency. The fan kit includes a machined block-off plate to fill the void left after mechanical fan removal.

Users often combine the JHM FMIC with:

• Upgraded intake systems like the 034Motorsport carbon fiber Y-pipe,

• Large bore throttle bodies,

• RS6/RS4 turbocharger hybrid setups,

• Enhanced fueling and tuning packages.

These combinations create a balanced, powerful, and highly reliable forced induction system.

Real-World Results and Community Feedback

The JHM FMIC has a strong following in the Audi enthusiast community due to its proven track record:

• Documented quarter-mile performance showcasing 10.8-second runs on RS6-R turbo setups with the FMIC.

• Reports of significant horsepower gains and consistent performance on dynos and street use.

• Positive feedback on durability and reliability under track conditions.

• Appreciated detailed installation support that reduces frustration for DIY installers.

Summary

The JHM Front Mount Intercooler kit for the Audi B5 S4 and RS4 2.7T platform is an expertly engineered, high-capacity cooling solution that addresses the inherent limitations of the factory side-mount intercooler. Its large 100% aluminum bar-and-plate core, matched with precision-bent piping and robust hardware, allows it to support upwards of 600-700hp in high-performance builds.

While installation may require deliberate modifications and patience, the performance gains in intake air cooling, boost response, and heat management are substantial. Backed by detailed instructions and installation media, this kit remains a favorite for enthusiasts looking to maximize their B5 S4’s turbocharging potential with a reliable, track-proven intercooler.

For owners aiming to enhance power, reduce heat soak, and improve overall engine efficiency, the JHM FMIC offers world-class engineering and long-term value as a cornerstone intercooler upgrade.
